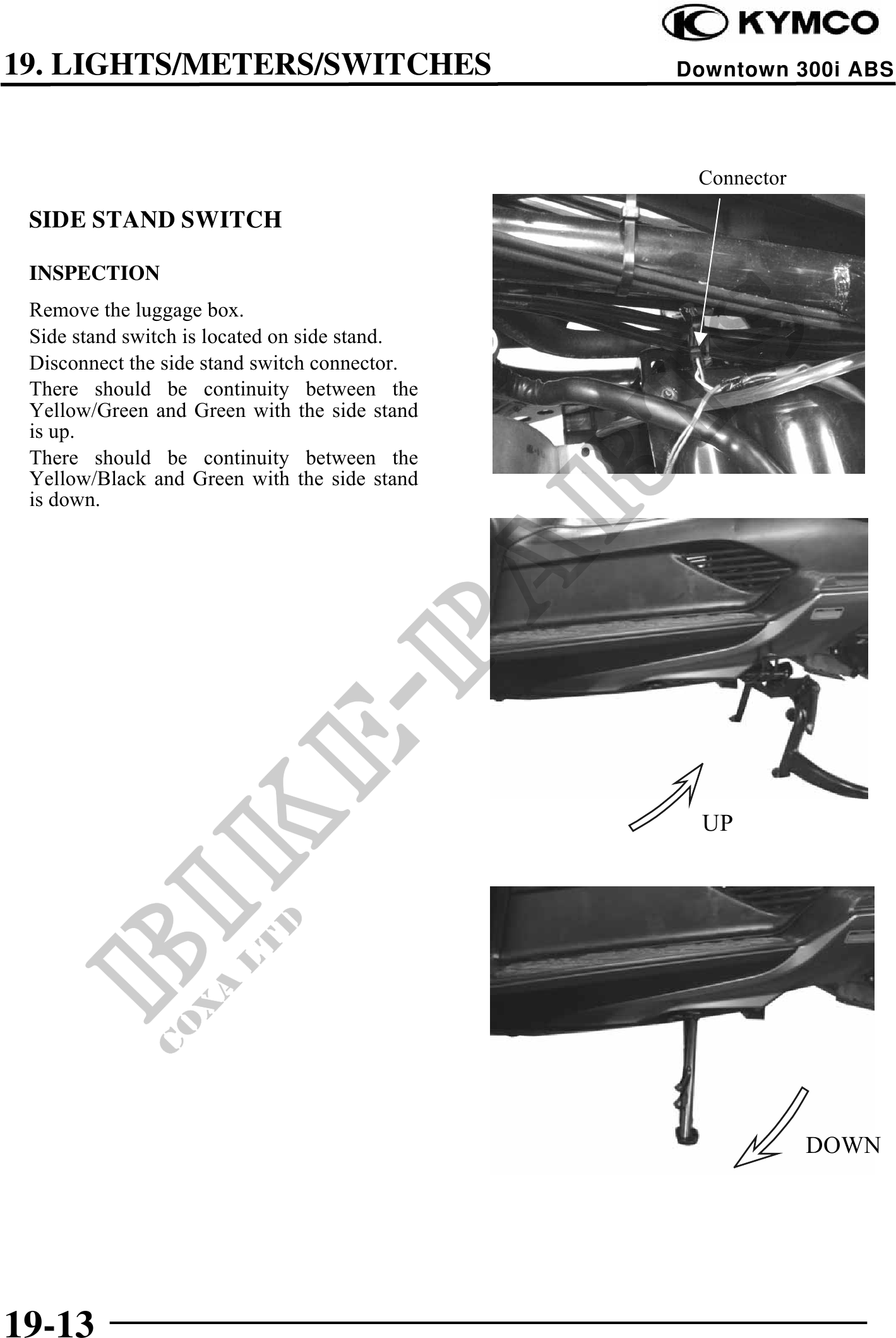

          19. LIGHTS/METERS/SWITCHES                     Downtown 300i ABS




                                                Connector

 SIDE STAND SWITCH

 INSPECTION
 Remove the luggage box.
 Side stand switch is located on side stand.
 Disconnect the side stand switch connector.
 There should be continuity between the
 Yellow/Green and Green with the side stand
 is up.
 There should be continuity between the
 Yellow/Black and Green with the side stand
 is down.




                                                 UP




                                                            DOWN




19-13
