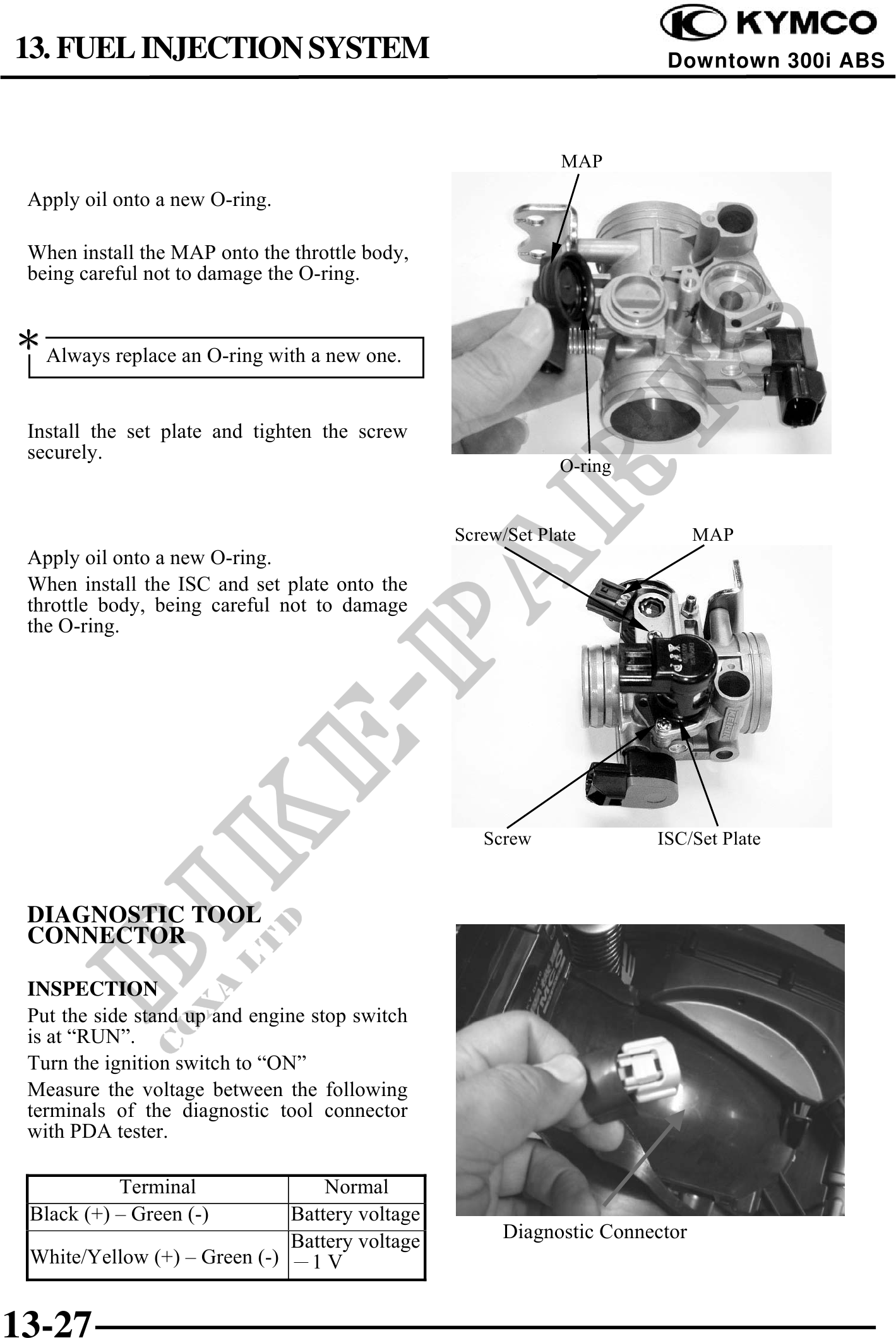

          13. FUEL INJECTION SYSTEM                                              Downtown 300i ABS



                                                             MAP

 Apply oil onto a new O-ring.

 When install the MAP onto the throttle body,
 being careful not to damage the O-ring.


 Always replace an O-ring with a new one.

 Install the set plate and tighten the screw
 securely.
                                                             O-ring


                                                Screw/Set Plate             MAP
 Apply oil onto a new O-ring.
 When install the ISC and set plate onto the
 throttle body, being careful not to damage
 the O-ring.




                                                   Screw              ISC/Set Plate



 DIAGNOSTIC TOOL
 CONNECTOR

 INSPECTION
 Put the side stand up and engine stop switch
 is at "RUN".
 Turn the ignition switch to "ON"
 Measure the voltage between the following
 terminals of the diagnostic tool connector
 with PDA tester.

           Terminal               Normal
 Black (+) ­ Green (-)        Battery voltage
                              Battery voltage        Diagnostic Connector
 White/Yellow (+) ­ Green (-) 1 V


13-27
