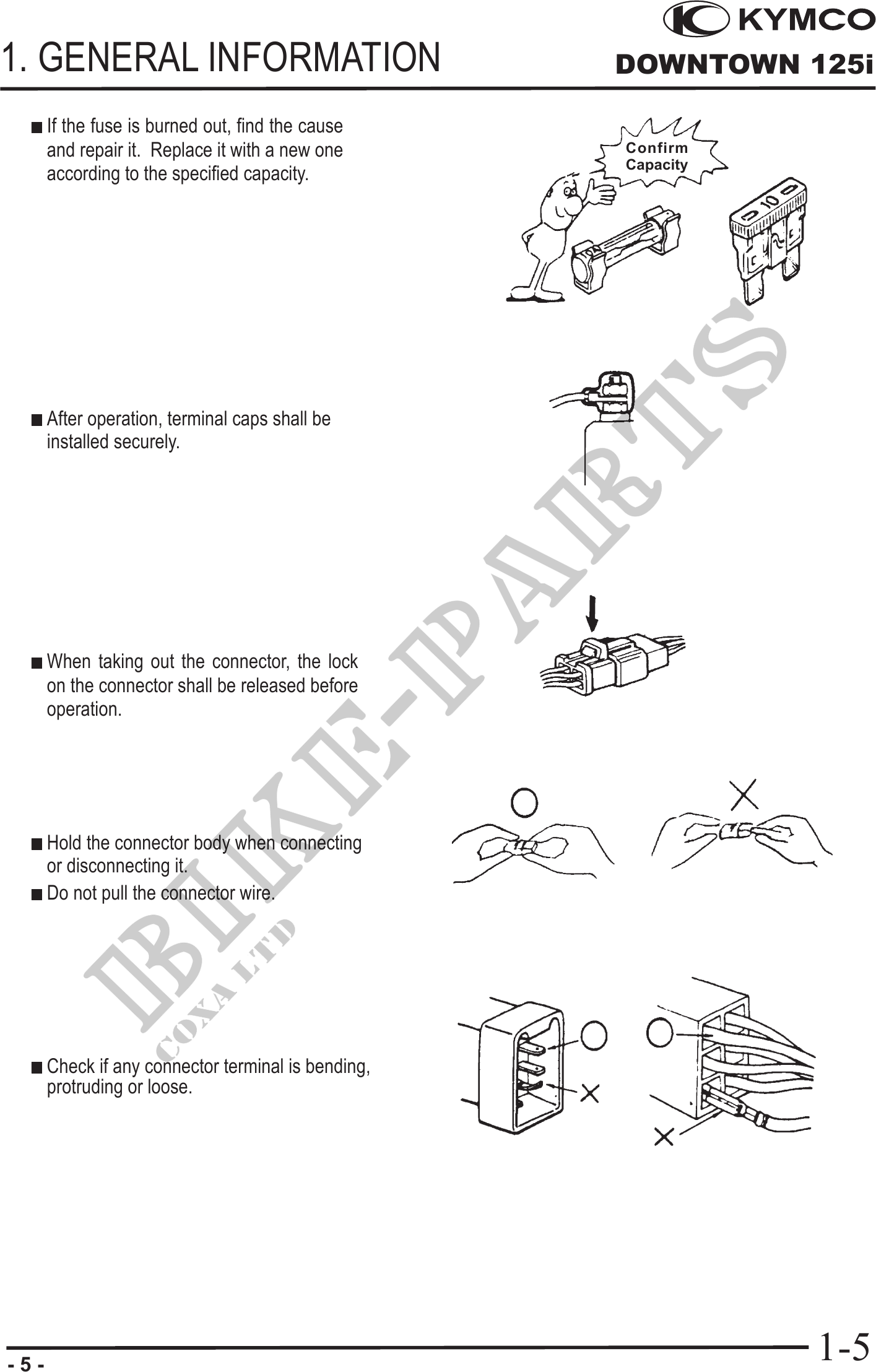

          1. GENERAL INFORMATION                              DOWNTOWN 125i

      If the fuse is burned out, find the cause
      and repair it. Replace it with a new one      Confirm
                                                    Capacity
      according to the specified capacity.




      After operation, terminal caps shall be
      installed securely.




      When taking out the connector, the lock
      on the connector shall be released before
      operation.




      Hold the connector body when connecting
      or disconnecting it.
      Do not pull the connector wire.




      Check if any connector terminal is bending,
      protruding or loose.




-5-
                                                               1-5
