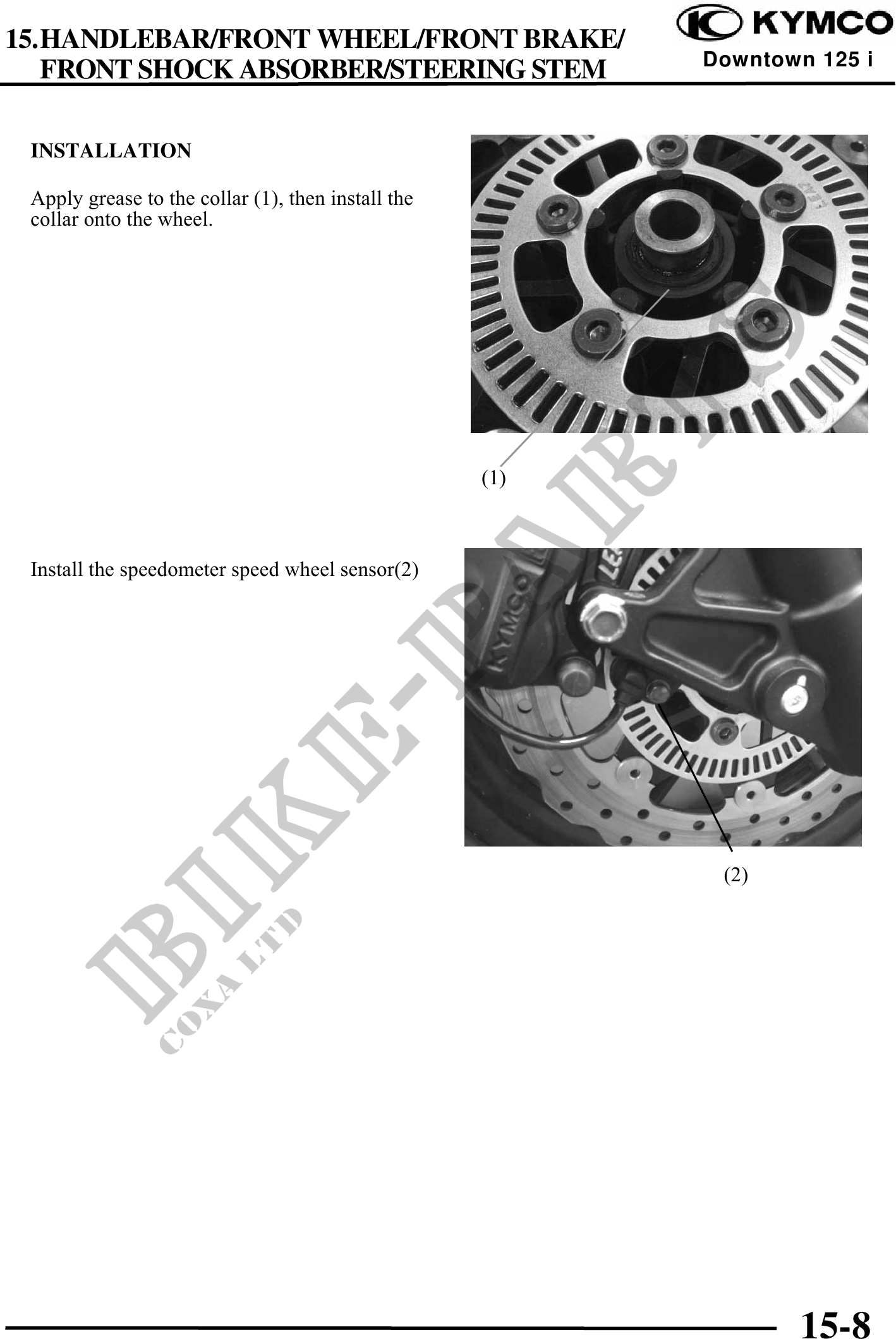

          15.HANDLEBAR/FRONT WHEEL/FRONT BRAKE/
                                                          Downtown 125 i
   FRONT SHOCK ABSORBER/STEERING STEM

 INSTALLATION

 Apply grease to the collar (1), then install the
 collar onto the wheel.




                                                    (1)



 Install the speedometer speed wheel sensor(2)




                                                           (2)




                                                                  15-8
