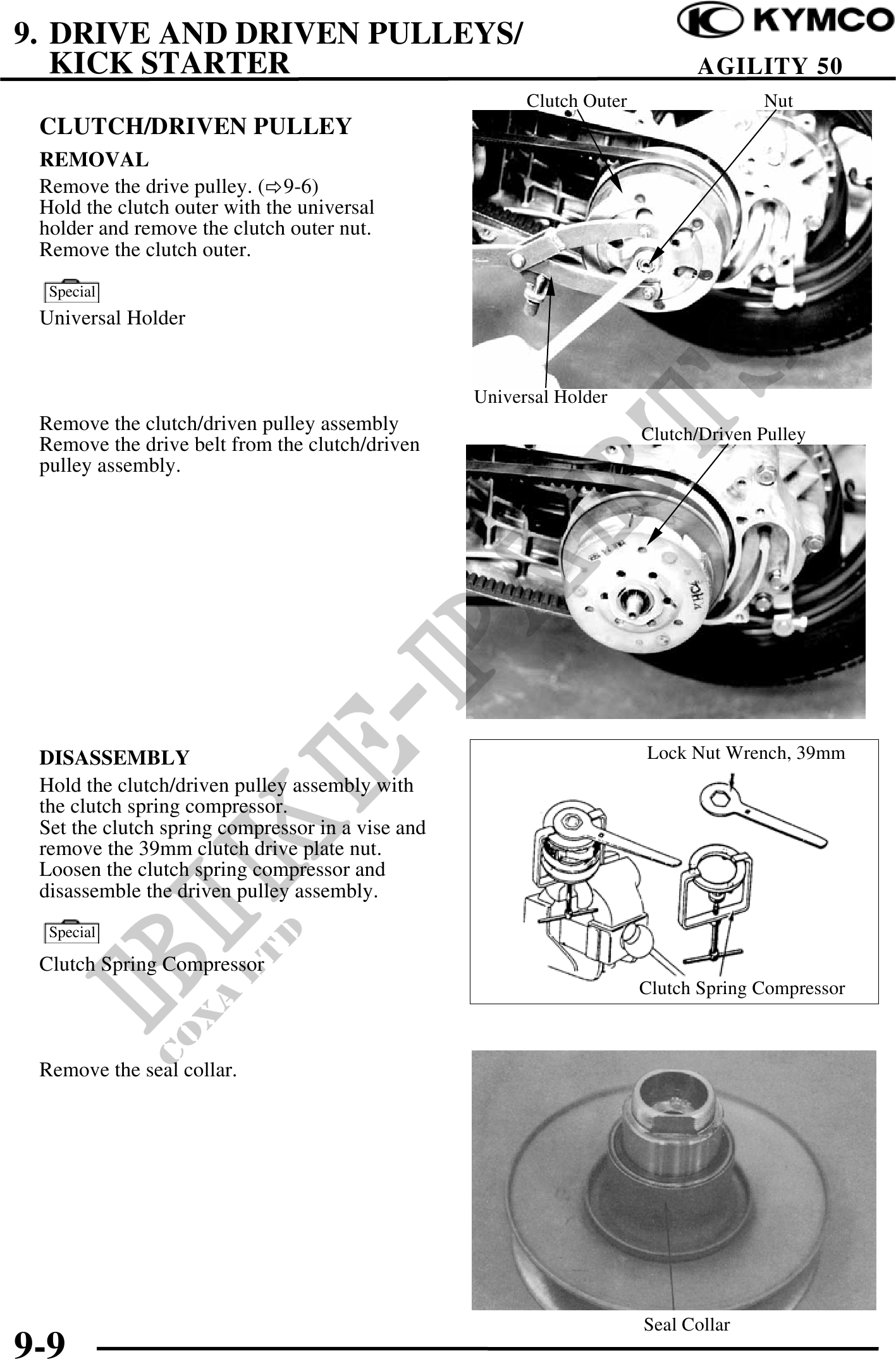

          9. DRIVE AND DRIVEN PULLEYS/
   KICK STARTER                                                              AGILITY 50
                                                        Clutch Outer                 Nut
 CLUTCH/DRIVEN PULLEY
 REMOVAL
 Remove the drive pulley. ( 9-6)
 Hold the clutch outer with the universal
 holder and remove the clutch outer nut.
 Remove the clutch outer.
  Special
 Universal Holder


                                                  Universal Holder
 Remove the clutch/driven pulley assembly                              Clutch/Driven Pulley
 Remove the drive belt from the clutch/driven
 pulley assembly.




 DISASSEMBLY                                                           Lock Nut Wrench, 39mm
 Hold the clutch/driven pulley assembly with
 the clutch spring compressor.
 Set the clutch spring compressor in a vise and
 remove the 39mm clutch drive plate nut.
 Loosen the clutch spring compressor and
 disassemble the driven pulley assembly.
  Special

 Clutch Spring Compressor
                                                                       Clutch Spring Compressor



 Remove the seal collar.




                                                                       Seal Collar
9-9
