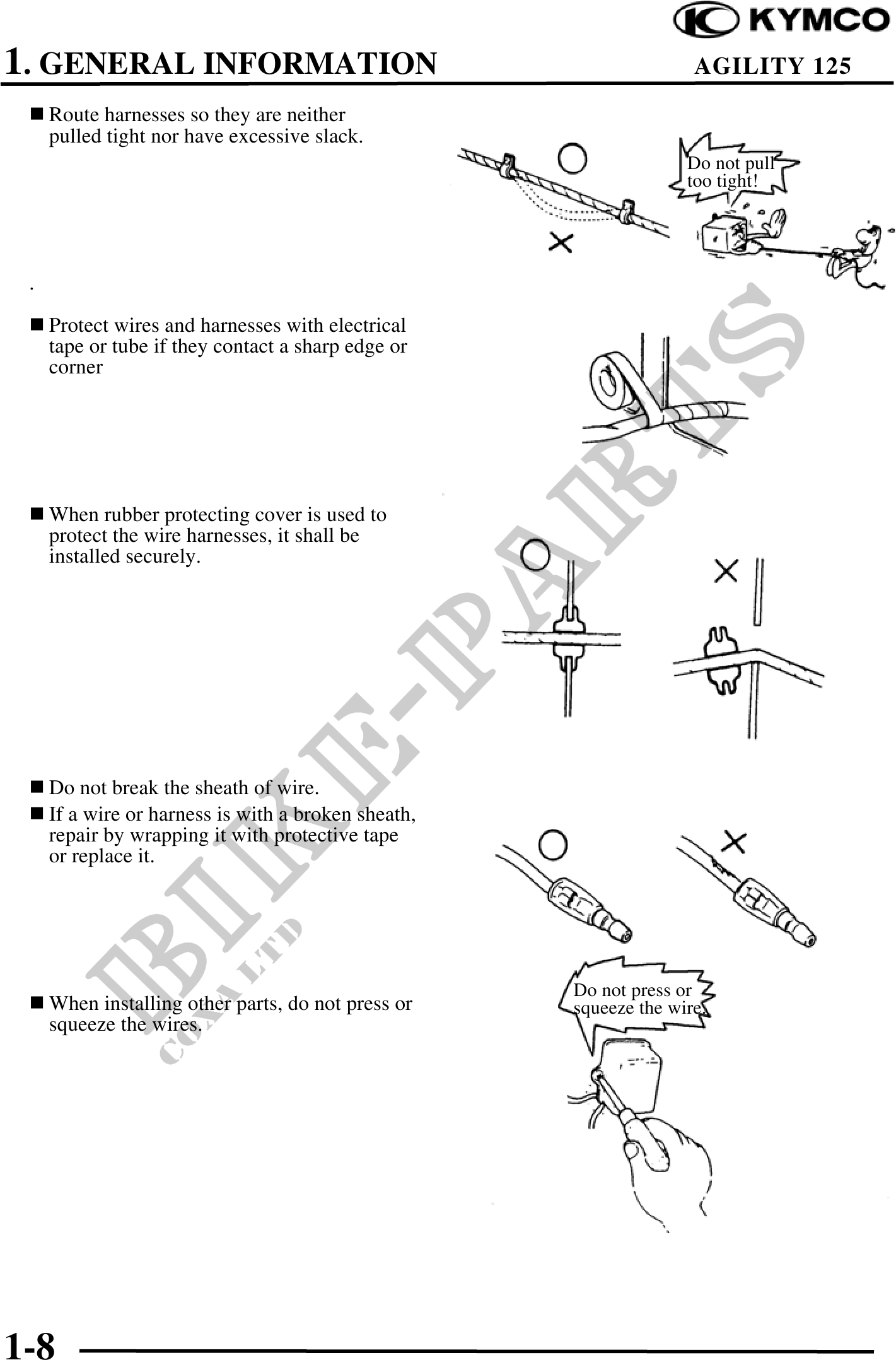

          1. GENERAL INFORMATION                                              AGILITY 125
     Route harnesses so they are neither
     pulled tight nor have excessive slack.
                                                                   Do not pull
                                                                   too tight!




 .

     Protect wires and harnesses with electrical
     tape or tube if they contact a sharp edge or
     corner




     When rubber protecting cover is used to
     protect the wire harnesses, it shall be
     installed securely.




     Do not break the sheath of wire.
     If a wire or harness is with a broken sheath,
     repair by wrapping it with protective tape
     or replace it.




                                                     Do not press or
     When installing other parts, do not press or    squeeze the wire.
     squeeze the wires.




1-8
