          7. CYLINDER HEAD/VALVES                                                AGILITY 125

                                                     Intake Manifold

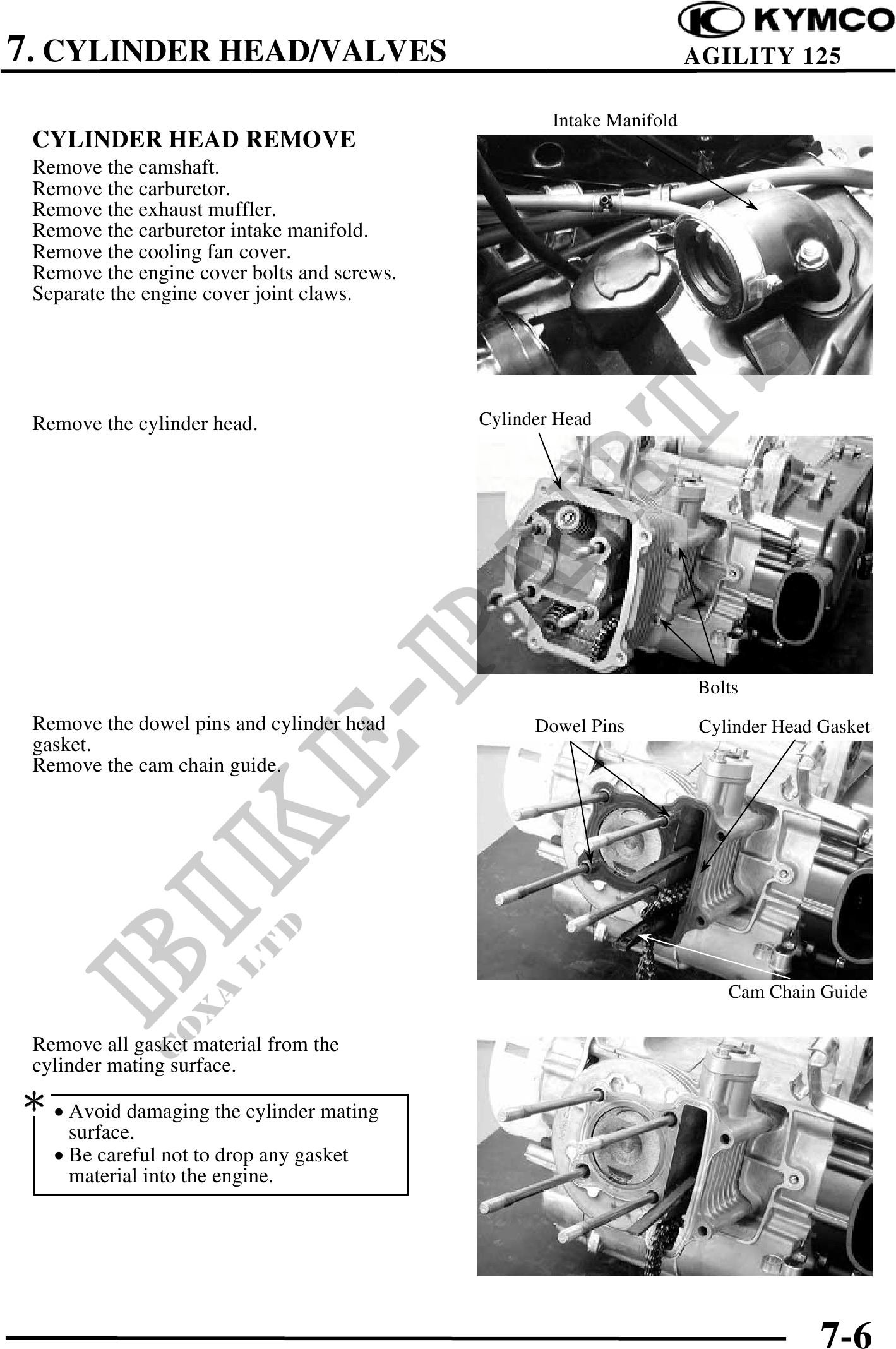

 CYLINDER HEAD REMOVE
 Remove the camshaft.
 Remove the carburetor.
 Remove the exhaust muffler.
 Remove the carburetor intake manifold.
 Remove the cooling fan cover.
 Remove the engine cover bolts and screws.
 Separate the engine cover joint claws.




 Remove the cylinder head.                   Cylinder Head




                                                                       Bolts
 Remove the dowel pins and cylinder head           Dowel Pins           Cylinder Head Gasket
 gasket.
 Remove the cam chain guide.




                                                                           Cam Chain Guide

 Remove all gasket material from the
 cylinder mating surface.
 · Avoid damaging the cylinder mating
     surface.
   · Be careful not to drop any gasket
     material into the engine.
