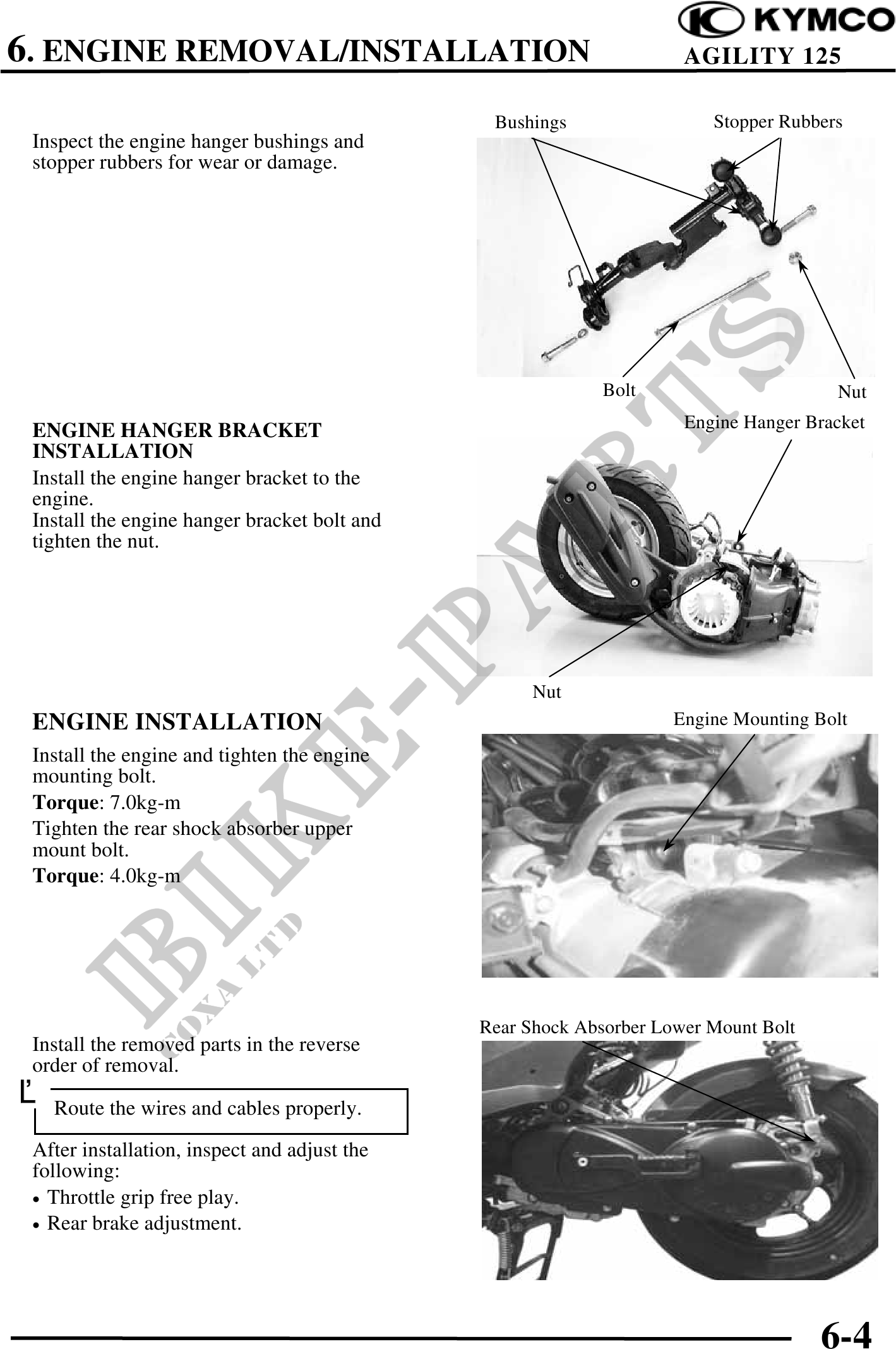

          6. ENGINE REMOVAL/INSTALLATION                                       AGILITY 125

                                               Bushings                 Stopper Rubbers
 Inspect the engine hanger bushings and
 stopper rubbers for wear or damage.




                                                            Bolt                      Nut

 ENGINE HANGER BRACKET                                               Engine Hanger Bracket
 INSTALLATION
 Install the engine hanger bracket to the
 engine.
 Install the engine hanger bracket bolt and
 tighten the nut.




                                                    Nut
 ENGINE INSTALLATION                                                Engine Mounting Bolt
 Install the engine and tighten the engine
 mounting bolt.
 Torque: 7.0kg-m
 Tighten the rear shock absorber upper
 mount bolt.
 Torque: 4.0kg-m




                                              Rear Shock Absorber Lower Mount Bolt
 Install the removed parts in the reverse
 order of removal.
 Route the wires and cables properly.
 After installation, inspect and adjust the
 following:
 · Throttle grip free play.
 · Rear brake adjustment.




                                                                                     6-4
