          5. FUEL SYSTEM                                                           AGILITY 125
                                                Air Cleaner Connecting Vacuum Tube   Intake Manifold
                                                Tube Band                             Band

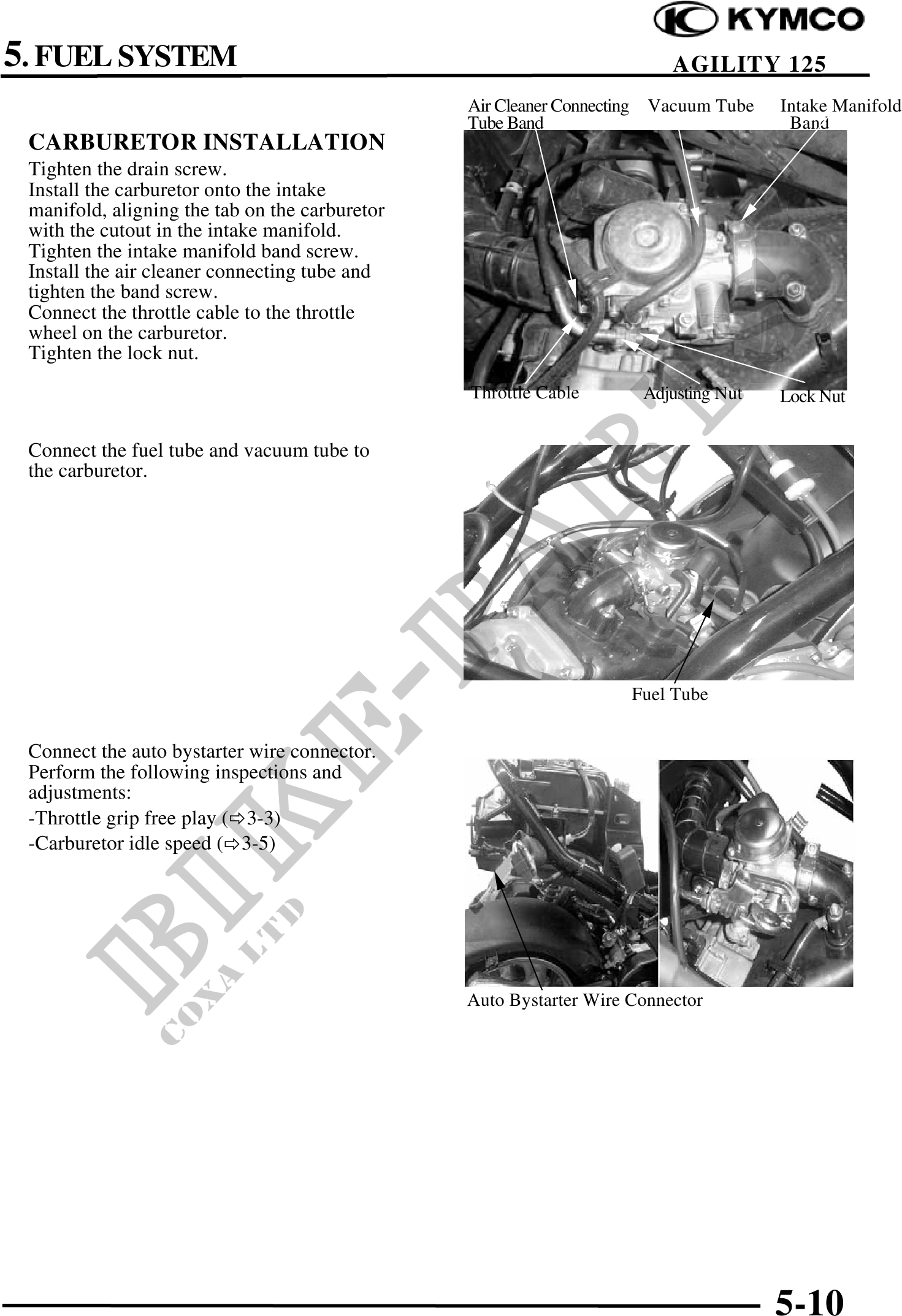

 CARBURETOR INSTALLATION
 Tighten the drain screw.
 Install the carburetor onto the intake
 manifold, aligning the tab on the carburetor
 with the cutout in the intake manifold.
 Tighten the intake manifold band screw.
 Install the air cleaner connecting tube and
 tighten the band screw.
 Connect the throttle cable to the throttle
 wheel on the carburetor.
 Tighten the lock nut.
                                                Throttle Cable       Adjusting Nut   Lock Nut

 Connect the fuel tube and vacuum tube to
 the carburetor.




                                                                    Fuel Tube


 Connect the auto bystarter wire connector.
 Perform the following inspections and
 adjustments:
 -Throttle grip free play ( 3-3)
 -Carburetor idle speed ( 3-5)




                                                Auto Bystarter Wire Connector
