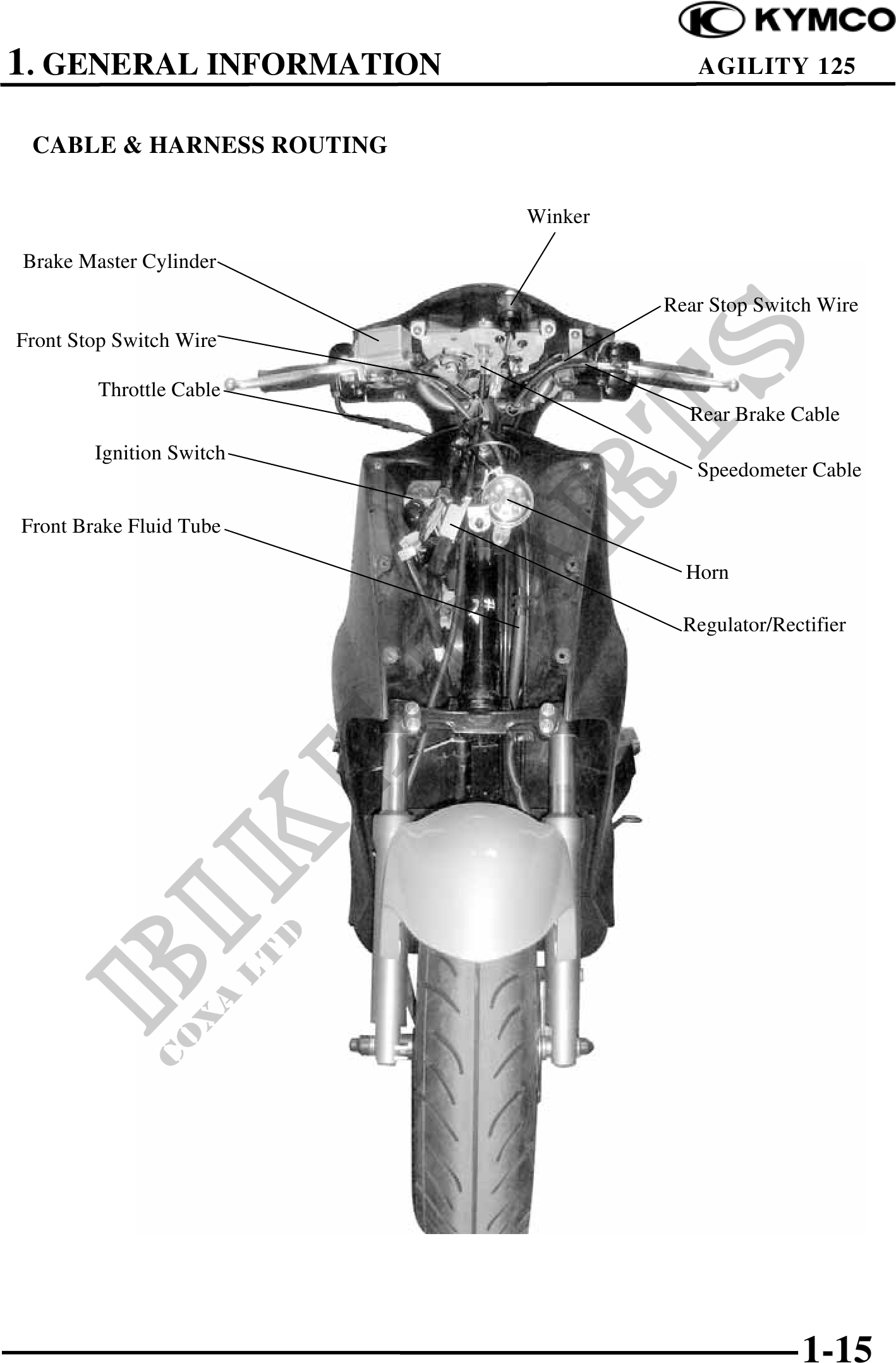

          1. GENERAL INFORMATION                 AGILITY 125


 CABLE & HARNESS ROUTING

                           Winker

Brake Master Cylinder

                                    Rear Stop Switch Wire
Front Stop Switch Wire

        Throttle Cable
                                      Rear Brake Cable
        Ignition Switch
                                       Speedometer Cable

Front Brake Fluid Tube

                                      Horn

                                      Regulator/Rectifier




                                                   1-15
